You open your KitchenAid dishwasher to start a cycle and realize you have been pressing the same two buttons for years without actually knowing what half the symbols on the control panel mean. You are not alone. KitchenAid packs a lot of functionality into a compact panel, and the icons representing those features are not always self-explanatory.
Understanding every symbol on your KitchenAid dishwasher, just like error codes, gives you control over how your machine cleans, dries, and protects your dishes. It also saves you from accidentally triggering functions you did not want, missing indicators that need your attention, or wasting energy running cycles longer than necessary.
This complete guide covers every category of KitchenAid dishwasher symbol: wash cycle icons, option and modifier buttons, drying symbols, status indicators, and alert lights.
How KitchenAid Organizes Its Dishwasher Control Panel
Before diving into individual symbols, it helps to understand how KitchenAid structures its control panels. Different models use different layouts, but most follow the same logical grouping.
Panel Types Across Models
KitchenAid dishwashers fall into two broad display categories. Hidden control models place all buttons along the top edge of the door, invisible when the door is closed, giving the front a seamless stainless steel appearance. Front control models display the panel visibly on the front door with icons printed alongside backlit LED indicators. Both types use identical symbols to represent the same functions, so this guide applies to both.
Symbol Categories at a Glance
Rather than scattering symbols randomly, KitchenAid groups them into logical zones. Cycle selection buttons typically run across the center or top of the panel. Option and modifier buttons sit alongside or below cycle selectors. Status and alert indicators, which illuminate without requiring a button press, appear at the edges or top of the panel. Understanding which zone a symbol belongs to helps you interpret it before you even read its label.
KitchenAid Dishwasher Wash Cycle Symbols Explained
Wash cycle symbols are the foundation of your KitchenAid control panel. Each one tells the machine how aggressively to clean, how much water to use, and how long to run. Here is what each one means and when to use it.
Normal or Normal Wash
The Normal cycle symbol typically shows a plate or dish icon, sometimes with water droplets. This is your everyday workhorse cycle. It heats water to between 130°F and 140°F and handles average food residue without applying heavy-duty intensity. Use this cycle for standard mixed loads of plates, glasses, and cutlery that carry typical soil levels.
Heavy or Heavy Duty
The Heavy cycle symbol often shows a pot or pan alongside water wave lines. This cycle runs hotter and longer than Normal, applying extra water pressure and heat to tackle baked-on grease, casserole residue, and heavily soiled cookware. Because it uses more energy and water, reserve it for loads that genuinely need the extra power rather than running it by default.
ProWash or Sensor Wash
The ProWash symbol typically shows a droplet or sensor wave, sometimes accompanied by the word “Pro.” This is KitchenAid’s intelligent cycle, where an internal soil sensor monitors water turbidity throughout the wash and automatically adjusts cycle time, water temperature, and intensity based on actual load conditions. It selects from Light, Normal, or Heavy performance levels dynamically, delivering the most efficient clean for whatever is inside the machine.
Express or Quick Wash
The Express or Quick Wash symbol usually shows a clock or lightning bolt, signaling speed. This cycle completes in under an hour and suits lightly soiled items like glasses, mugs, and plates used for snacks or beverages. It uses more water and heat per minute to compensate for the shortened cycle time, so KitchenAid notes it does not carry government energy certification. Do not use it for heavily soiled loads.
Rinse Only or Rinse and Hold
The Rinse Only symbol typically shows water spray lines without a wash tub icon. This cycle sprays dishes with water but runs no detergent and performs no full wash. Use it when dishes will sit in the machine for a few hours and you want to prevent food from drying and hardening before you run a proper cycle. Never add detergent for a Rinse Only cycle.
Sani-Rinse or Sanitize
The Sanitize symbol usually shows a thermometer, shield, or star-burst shape representing high heat. This cycle raises the final rinse temperature to a minimum of 150°F, eliminating 99.999% of food soil bacteria on dishes and utensils. KitchenAid’s Sani-Rinse option carries NSF certification for sanitization. Use it for baby bottles, cutting boards, and any items that contact raw meat. Note that the Sanitize symbol also illuminates at the end of a successful sanitize cycle to confirm that target temperature was reached throughout.
KitchenAid Dishwasher Wash Cycle Symbols Quick Reference
| Symbol | Cycle Name | Best For | Relative Energy Use |
|---|---|---|---|
| Plate/dish with droplets | Normal | Everyday mixed loads | Medium |
| Pot/pan with waves | Heavy | Baked-on grease, cookware | High |
| Sensor/droplet wave | ProWash | Auto-adjusting any load | Variable |
| Clock/lightning bolt | Express Wash | Lightly soiled items | Medium-High |
| Spray lines only | Rinse Only | Pre-rinsing before full cycle | Low |
| Thermometer/shield | Sanitize | Baby items, cutting boards | High |
Option and Modifier Symbols on KitchenAid Dishwashers
Options modify how an already-selected cycle runs. They add capability rather than replace a cycle, and many of them directly influence how clean or dry your dishes come out.
Heated Dry
The Heated Dry symbol shows a heating coil or sun-like radiating lines. Selecting this option activates an internal heating element during the dry phase, circulating hot air to evaporate moisture from dishes quickly. It produces thoroughly dry dishes but uses additional electricity. Skip it for plastic-heavy loads, since plastics do not retain heat well enough to benefit from heated drying and may warp under sustained heat.
ProDry or Extended ProDry
ProDry symbols typically show a fan inside a circle, or a fan combined with heating element lines. This is KitchenAid’s premium drying option on select models, combining a heating element with a fan to actively circulate hot air around all rack levels simultaneously. Extended ProDry adds additional time to the dry phase for improved results on heavily loaded cycles. Together, these are the best-performing drying options KitchenAid offers.
High-Temperature Wash
The High-Temp Wash symbol usually shows a thermometer with an upward arrow. Selecting it raises the main wash water temperature beyond the standard cycle range, helping dissolve grease and baked-on food more effectively. It adds time to the cycle and uses more energy, so use it specifically for pots, pans, and loads with stubborn cooked-on residue.
Delay Start
The Delay Start symbol shows a clock face, sometimes with an hourglass. This option lets you schedule a cycle to begin at a specific time in the future, typically in two-hour, four-hour, or eight-hour increments depending on the model. Use it to run cycles overnight or during off-peak electricity hours, which lowers your energy cost per cycle in regions with time-of-use utility pricing.
Control Lock
The Control Lock symbol shows a padlock icon. When active, it disables all panel buttons to prevent accidental cycle changes or unintended starts, particularly useful in households with young children. On most KitchenAid models, activate and deactivate Control Lock by pressing and holding the Heated Dry button for three seconds. When locked, pressing any other button causes the lock indicator to flash three times.
Status and Alert Indicator Symbols on KitchenAid Dishwashers
Status indicators illuminate on their own during or after a cycle without requiring a button press. They communicate what the machine is doing or what it needs from you.
Clean
The Clean indicator glows when a cycle completes successfully. On models with Door Open Dry, the door opens slightly at cycle end and the Clean light illuminates alongside it. A flashing Clean light, rather than a steady glow, signals a cycle interruption or drainage problem. If you see the Clean light flashing, press Cancel/Drain to clear the cycle before diagnosing the issue.
Sanitized
The Sanitized indicator glows separately from the Clean light and only illuminates when a Sani-Rinse or Sanitize cycle reaches and maintains the required minimum temperature throughout. If target temperature was not achieved at any point, this indicator does not illuminate even if the cycle completed. Its absence after a Sanitize cycle tells you the incoming water temperature was too low or the heating element did not perform correctly.
Rinse Aid Low
The Rinse Aid Low indicator typically shows a water droplet or a sun-like starburst icon, sometimes labeled. It illuminates when the rinse aid dispenser needs refilling. Rinse aid reduces surface tension of water during the final rinse, which helps water sheet off dishes rather than beading and leaving droplets. Without it, even the best drying cycle leaves water spots on glassware. Refill the dispenser as soon as this indicator appears.
Cancel/Drain
The Cancel/Drain button and its associated light serve a dual purpose. Pressing it mid-cycle starts a drain sequence that removes water from the tub before unlocking the door. The Cancel/Drain light stays on during the drain sequence, typically around three minutes, and goes out when draining completes. Never force the door open during an active cycle without pressing Cancel/Drain first.
Status Indicators at a Glance
| Symbol | What It Means | Action Required |
|---|---|---|
| Clean (steady) | Cycle completed successfully | Unload dishes |
| Clean (flashing) | Cycle interrupted or drain issue | Press Cancel/Drain; diagnose |
| Sanitized | Target sanitize temperature confirmed | None; indicator confirms success |
| Rinse Aid Low | Dispenser needs refill | Refill rinse aid dispenser |
| Padlock (lit) | Control Lock active | Hold Heated Dry 3 sec to deactivate |
| Cancel/Drain (lit) | Drain sequence in progress | Wait for light to go out before opening |
Dishwasher-Safe Symbols on Your KitchenAid Cookware
Beyond the control panel, KitchenAid dishwasher owners encounter a related but separate set of symbols: the ones printed on the bottom of cookware, glassware, and containers indicating whether items can safely go in the machine.
These vary by manufacturer but follow loose universal conventions. A symbol showing plates or glasses beneath water droplets or spray lines generally indicates the item is dishwasher safe. A symbol showing only the top rack, typically a plate icon with an arrow pointing upward or the text “Top Rack Only,” means the item tolerates a dishwasher’s lower temperatures but should not be exposed to the high heat of the lower rack near the heating element. A crossed-out dishwasher symbol means hand-wash only.
Recognizing these symbols protects your kitchen investment. Crystal, non-stick coatings, wooden handles, and hand-painted ceramics frequently carry Top Rack Only or hand-wash designations that many owners overlook.
Dishwasher-Safe Symbol Guide for your KitchenAid Cookware
| Symbol Appearance | Meaning | Correct Action |
|---|---|---|
| Plates/glasses with water droplets | Fully dishwasher safe | Load anywhere |
| Plate with upward arrow or “Top Rack Only” | Top rack placement only | Load in upper rack only |
| Crossed-out dishwasher icon | Not dishwasher safe | Hand-wash only |
| Thermometer with temperature limit | Safe up to a specific temperature | Check incoming water settings |
| No symbol present | Unknown — assume hand-wash | Verify with manufacturer |
Products That Work Alongside KitchenAid Dishwasher Symbols
Understanding your KitchenAid’s symbols means choosing the right products to match each cycle and indicator.

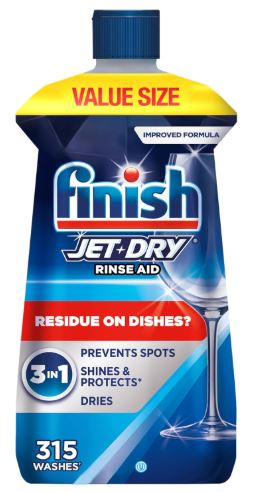

Finish Jet-Dry Dishwasher Rinse Aid, 32 oz (315 Washes)
When your KitchenAid’s Rinse Aid Low indicator lights up, this is the product to reach for. Finish Jet-Dry is the most widely used and consistently top-rated rinse aid on Amazon, earning strong ratings from tens of thousands of verified buyers. It reduces water surface tension during the final rinse so water sheets off dishes rather than beading, eliminating the water spots and cloudy residue that appear when the dispenser runs dry. At 32 oz, a single bottle covers up to 315 wash cycles. Using rinse aid with your Heated Dry or ProDry setting delivers noticeably better results than either product alone.

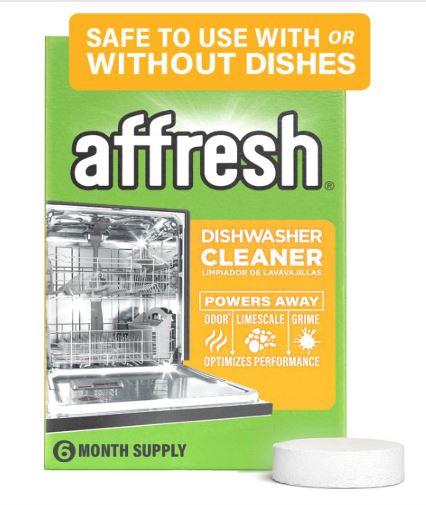

Affresh Dishwasher Cleaner Tablets (6-Count, 6-Month Supply)
Monthly cleaning keeps every cycle symbol on your KitchenAid panel performing as designed. Affresh is the number one recommended dishwasher cleaner by Whirlpool and KitchenAid, and it earns over 53,000 five-star ratings on Amazon for good reason. Each tablet deep-cleans inside the pump, tub, spray arms, and drain hoses, removing limescale, mineral deposits, and odor-causing bacteria that accumulate invisibly over time. Drop one tablet in the bottom of the tub and run a Normal or Heavy cycle monthly. Doing so prevents the buildup that causes drainage problems, reduced spray pressure, and heating inefficiency that trigger warning indicators on your control panel.
Frequently Asked Questions
Why is my KitchenAid dishwasher’s Clean light flashing instead of glowing steadily?
A flashing Clean light signals either a cycle interruption or a drainage problem. Press Cancel/Drain and hold until the drain sequence begins, then let it complete fully before starting a new cycle. If the Clean light continues flashing after the drain sequence, check the filter for food debris and inspect the drain hose for kinks.
What does the Sanitized indicator light mean on a KitchenAid dishwasher?
The Sanitized indicator confirms that the Sani-Rinse or Sanitize cycle maintained the required minimum final rinse temperature of 150°F throughout the cycle. If this light does not glow after a Sanitize cycle, the incoming water temperature was too low or the heating element did not sustain the required temperature. Run the hot water at your sink for 30 seconds before starting a Sanitize cycle to ensure adequate incoming water temperature.
How do I turn off the Control Lock on my KitchenAid dishwasher?
Press and hold the Heated Dry button for three seconds. The padlock indicator extinguishes and all panel buttons become active again. On some models, Control Lock uses a different dedicated button — check your user manual if holding Heated Dry does not work.
Why does my KitchenAid dishwasher’s Rinse Aid indicator keep lighting up quickly after refilling?
If the indicator reappears within just a few cycles of refilling, the rinse aid dispenser cap may not be sealing correctly, allowing rinse aid to dispense too rapidly or leak into the tub. Inspect the cap for damage and replace it if it does not twist securely into position.
Can I use the Express Wash cycle every day?
Technically yes, but it is not the most efficient or effective choice for everyday use. The Express Wash cycle uses more water per minute to compensate for its short runtime, making it less energy efficient than Normal for average loads. Reserve it for lightly soiled items when you need them clean quickly. For daily loads with typical food residue, Normal or ProWash delivers better cleaning at lower energy cost.
What does a sun or starburst symbol on my KitchenAid panel mean?
On the control panel, a sun or starburst symbol typically represents the Heated Dry option. On the rinse aid dispenser area, it indicates the Rinse Aid Low alert. Context determines which function it points to — dispenser area means you need to refill rinse aid, while the main panel area means the heated drying function is selected or available.
Know Your KitchenAid Dishwasher Panel and Get the Most From Every Cycle
Every symbol on your KitchenAid dishwasher exists for a reason. Cycle symbols match the machine’s intensity to your load, option symbols add targeted performance, and status indicators keep you informed without interrupting your day. Together, they give you precise control over one of the hardest-working appliances in your kitchen.
Start by identifying every symbol on your specific model using this guide, then experiment with the ProWash and ProDry combination for everyday loads, keep the rinse aid dispenser full, and run a monthly cleaning cycle. These small habits make a significant difference in cleaning performance, energy efficiency, and the long-term reliability of your KitchenAid dishwasher.
