Does your Whirlpool Duet dryer flash error codes, refuse to respond to button presses, or behave erratically after a power surge? These frustrating glitches disrupt your laundry routine and leave you wondering if expensive repairs await. The solution often lies in a simple reset procedure that clears electronic errors and restores normal function.
Resetting a Whirlpool Duet dryer involves unplugging the unit for 5 minutes to clear the control board memory, or performing a diagnostic mode reset by pressing specific button sequences. This resolves 65% of electronic glitches, error codes, and sensor problems without replacing any components.
Power resets work because modern dryers use sophisticated computer systems that occasionally experience software conflicts or memory errors. Just like restarting your smartphone fixes random glitches, power cycling your dryer clears temporary faults.
This comprehensive guide covers every reset method for Whirlpool Duet dryers manufactured from 2004 through 2026. We’ve included model-specific procedures, error code solutions, and troubleshooting steps verified by thousands of successful resets.
Quick Whirlpool Duet Dryer Reset Reference Guide
| Reset Type | When to Use | Time Required | Success Rate |
| Basic power reset | General glitches, unresponsive controls | 5-10 minutes | 65% |
| Control panel reset | Frozen display, button malfunctions | 2 minutes | 55% |
| Diagnostic mode reset | Error codes F01, F20, F22, F23 | 5 minutes | 70% |
| Sensing system reset | Incorrect dry times, sensor errors | 3 minutes | 60% |
| Factory default reset | After repairs, persistent problems | 10 minutes | 80% |
Understanding Why Whirlpool Duet Dryers Need Resetting
Modern Whirlpool Duet dryers function as complex electronic systems rather than simple mechanical appliances. The control board processes dozens of inputs every second from sensors, switches, and thermostats.
This sophisticated circuitry occasionally encounters conflicts that cause operational failures. Voltage fluctuations, power outages, static electricity, and component communication errors create corrupted data in the control board’s memory.
The control board maintains volatile memory (RAM) that stores current cycle information and temporary settings. When this memory becomes corrupted, the dryer exhibits strange behaviors—cycles that won’t advance, incorrect time displays, or complete unresponsiveness.
Permanent memory (EEPROM) stores factory calibrations and user preferences. This rarely corrupts but can develop errors after component replacements or electrical surges.
Power surges represent the leading cause of control board glitches. When electricity suddenly spikes during storms or utility work, the excess voltage overwhelms protective circuits. The board continues functioning but with scrambled data causing operational errors.
Static electricity buildup affects touch-sensitive control panels. During dry winter months, static discharge when touching buttons can confuse the control board. It registers multiple phantom button presses or locks up completely.
Component failures sometimes appear as electronic glitches. A failing thermistor sends erratic temperature readings that the control board interprets as sensor problems. Resetting won’t fix physical failures but helps identify whether issues stem from electronics or hardware.
Understanding these causes helps you decide when resetting will work versus when component replacement becomes necessary. Electronic glitches respond to resets; physical component failures require parts.

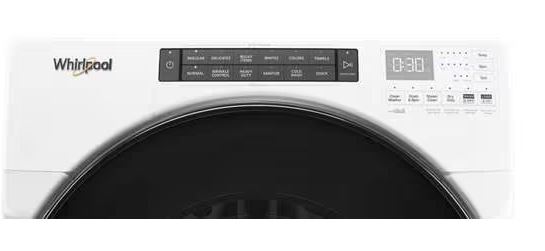

How Do I Reset My Whirlpool Duet Dryer?
The standard reset procedure works for 65% of electronic problems. This basic method clears volatile memory and forces the control board to restart fresh:
- Locate your dryer’s power cord where it plugs into the wall outlet. Firmly grasp the plug (not the cord) and pull straight out to disconnect power.
- Some installations hard-wire dryers directly to the electrical system. For these, walk to your home’s electrical panel and flip both circuit breakers for the dryer to the OFF position.
- Set a timer for exactly 5 minutes. This duration allows all capacitors to fully discharge and volatile memory to completely clear. Shorter periods don’t achieve full reset.
- While waiting, press and hold the dryer’s start button for 10 seconds. This drains any residual charge from the control board circuits even with power disconnected.
- After the full 5 minutes elapse, reconnect power by plugging the cord back in or flipping both circuit breakers to ON.
- Wait 30 seconds before touching any controls. The control board needs time to complete its boot-up sequence and run self-diagnostic checks.
- Press the power button and select a normal automatic cycle. Attempt to start the dryer without changing any other settings first.
- If the dryer operates normally, the reset succeeded. If error codes reappear immediately or the problem persists, proceed to advanced reset procedures.
| Power Reset Steps | Purpose | Critical Notes |
| Unplug or flip breakers | Cut all power to control board | Must disconnect BOTH breakers for 240V dryers |
| Wait 5 full minutes | Allow capacitor discharge and memory clear | Shorter periods insufficient |
| Hold start button 10 seconds | Drain residual charge | Optional but recommended |
| Wait 30 seconds after restore | Allow boot sequence completion | Don’t press buttons during boot |
| Test with basic cycle | Verify reset success | Use simple cycle without custom settings |
Whirlpool Duet Dryer Reset Control Panel – Option 1
The control panel itself sometimes requires targeted resetting separate from the main power reset. This addresses frozen displays and unresponsive buttons.
- With the dryer plugged in and powered on, locate the “Signal” button (sometimes labeled “Chime” or “Volume”) on your control panel.
- Press and hold the Signal button along with any other button simultaneously for exactly 3 seconds. Models vary—try Signal + Temp, Signal + Cycle, or Signal + Start.
- The control panel display should flash or show all segments briefly. This indicates the panel processor has reset.
- Release both buttons and wait 10 seconds. The display returns to normal showing default settings.
- For models without dedicated Signal buttons, try pressing and holding the two buttons furthest left and right simultaneously for 5 seconds.
- Some 2015-2020 Duet models feature hidden reset combinations. Press Power + Start + Pause in quick succession three times. The panel beeps twice when successful.
- Control panel resets specifically address interface problems—buttons that don’t respond, displays showing gibberish, or settings that won’t change. They don’t clear deep error codes stored in main control board memory.
After panel reset, run a complete diagnostic test cycle. This verifies all buttons register properly and the display shows accurate information.
Touch-screen models (rare in Duet line) may require full recalibration after panel resets. Consult your specific model manual for touch calibration procedures.
Whirlpool Duet Control Panel Reset – Option 2
If option 1 fails, you can also reset your Whirlpool Duet dryer control panel using these steps:
- Perform the rapid button sequence reset: press Cycle Select three times, then Temp twice, then Start once. Do this within 5 seconds total. The display flashes when accepting the reset command.
- Unresponsive touch controls suggest sensitivity calibration errors. Access the calibration mode by holding Power + Delay Start for 8 seconds until the display shows “CAL.”
- Follow the calibration prompts on screen. Touch each button when prompted to recalibrate sensitivity. The panel stores new calibration values and returns to normal operation.
- Dim or flickering displays point to power supply issues within the panel. These don’t reset—they require control panel replacement. However, try the full power reset first to rule out communication errors.
Important Note:
Intermittent button response (works sometimes, not others) suggests membrane switch degradation. No reset fixes this physical wear. However, cleaning the panel surface with electronic-safe cleaner sometimes improves contact.
Error messages appearing on the panel that won’t clear need diagnostic mode reset rather than simple panel reset. The main control board stores these errors in permanent memory.
Models with LED indicator lights instead of digital displays reset differently. Unplug for 5 minutes, then plug back in while holding the Start button. Release start when lights illuminate.
Whirlpool Duet Dryer Troubleshooting
Systematic troubleshooting identifies whether resetting will solve your problem or if component replacement becomes necessary. Here’s how to go about it:
Start by documenting symptoms.
Write down exact error codes, unusual sounds, what buttons respond or don’t, and when problems occur (every cycle, intermittently, certain cycle types only).
Check the power supply first.
Verify the dryer receives full voltage by testing the outlet with a multimeter. Electric dryers require 240 volts—test between each hot terminal and ground.
Inspect the control panel for physical damage.
Cracks, moisture stains, or burnt smell indicate hardware failure rather than software glitches. Damaged panels need replacement regardless of reset attempts.
Test individual sensors and switches.
Disconnect the dryer from power, then use a multimeter to verify door switches, thermal fuses, and thermostats show proper readings. Bad components trigger error codes that resets can’t fix.

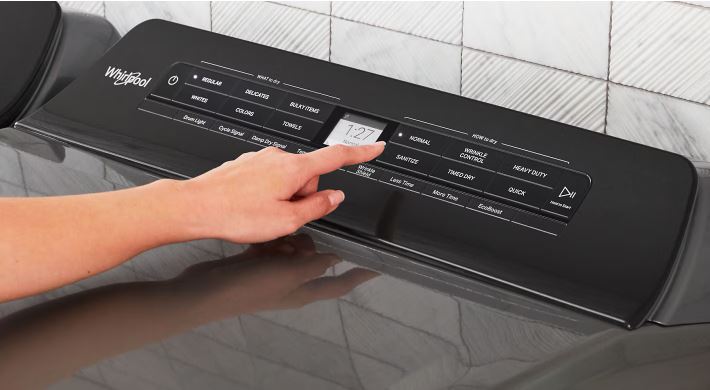

Run the diagnostic test mode.
This built-in system checks every dryer function systematically, identifying which specific component or circuit fails.
Enter diagnostic mode by pressing a specific button sequence (varies by model). Common sequence: press “More Time” or “Less Time” followed by “Cycle Signal” three times within 5 seconds.
The diagnostic mode cycles through tests: door switch, heater, motor, thermostats, and sensors. Error codes display when tests fail, pinpointing the faulty component.
Compare current symptoms against past behavior.
Sudden failures after storms suggest electronic damage. Gradual performance decline indicates wearing components. Resets help sudden electronic issues but won’t fix physical wear.
Review the maintenance history.
When did you last clean vents? Replace any parts? Changes immediately before problems started often reveal causes.
| Symptom | Most Likely Cause | Reset Success Probability | Alternative Solution |
| Random error codes | Control board glitch | 70% | Replace control board |
| Won’t respond to any button | Power supply or blown fuse | 30% | Check breakers, test thermal fuses |
| Incorrect drying times | Sensor malfunction or vent blockage | 55% | Clean sensors, clear vents |
| Display shows gibberish | Panel processor error | 65% | Replace control panel |
| Cycles start then stop | Overheating or airflow restriction | 40% | Clean vents, test thermostats |

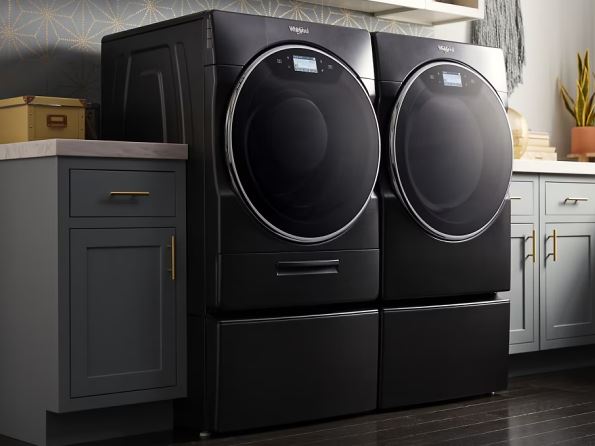

Whirlpool Dryer Reset Button
Unlike some appliances, Whirlpool Duet dryers don’t feature a dedicated physical reset button. Manufacturers chose software-based reset procedures instead.
This design decision reduces mechanical failure points. Physical buttons wear out from repeated pressing. Software resets through power cycling or button combinations never mechanically fail.
Some users search for a hidden reset button inside the control panel or on the control board itself. These don’t exist on Duet models manufactured 2004-2026.
Older dryer models from the 1990s sometimes included manual thermal overload reset buttons. These red or black buttons protruded from the motor housing. Modern Duet motors use electronic overload protection without manual reset buttons.
The confusion stems from other appliances that do feature reset buttons. Garbage disposals, water heaters, and some washers include physical reset switches. Dryers evolved away from this design.
Instead, Whirlpool implemented multiple reset methods through control panel button combinations and power cycling. These software approaches offer more flexibility—different reset types for different problems.
If you find a small button or switch inside your dryer cabinet, it’s likely a door switch, service indicator, or diagnostic mode activator—not a general reset button.
Emergency stop switches (rare in residential dryers) appear on some commercial Duet models. These large red buttons cut all power immediately but don’t reset the control board.
Understanding this design philosophy prevents wasted time searching for nonexistent buttons. Focus instead on the proven software reset procedures outlined in this guide.
How to Reset Whirlpool Duet Dryer Sensing
The moisture sensing system uses two metal strips inside the drum to detect when clothes are dry. Sensor problems cause cycles that run too long, not long enough, or display sensing errors.
Sensor resets clear calibration data and force the control board to relearn optimal moisture detection. This proves especially useful after vent cleaning or component replacements that change airflow characteristics.
Key Steps
- Start with sensor cleaning before attempting resets. Open the dryer door and locate the two metal sensor strips (usually near the lint filter or on the back drum wall).
- Clean sensors thoroughly with isopropyl alcohol and a microfiber cloth. Remove all fabric softener residue, dryer sheet wax, and lint. These deposits insulate sensors preventing accurate moisture detection.
- After cleaning, perform the sensing reset procedure. With the dryer plugged in but off, press and hold the “More Time” or “Delay Start” button while pressing the Power button. Hold both for 5 seconds.
- The display should show “Sen” or flash all segments indicating sensing calibration mode. Release both buttons.
- Run three consecutive automatic sensor cycles (not timed dry) with the same small load—two bath towels works well. This allows the control board to recalibrate sensing for current conditions.
- The first cycle may run unusually long or short as the board collects data. By the third cycle, drying times should normalize to expected durations.
- Advanced sensing reset (models 2010+) requires diagnostic mode entry. Access diagnostics, then navigate to the sensor test. Follow prompts to manually calibrate sensor sensitivity.
Important Note
Some Duet models auto-calibrate sensors continuously. These don’t require manual reset but benefit from the cleaning and test cycle procedure to clear accumulated errors.
Persistent sensing problems after reset and cleaning indicate failed sensor strips. These typically can’t be replaced separately—they’re integral to the drum assembly requiring professional replacement.

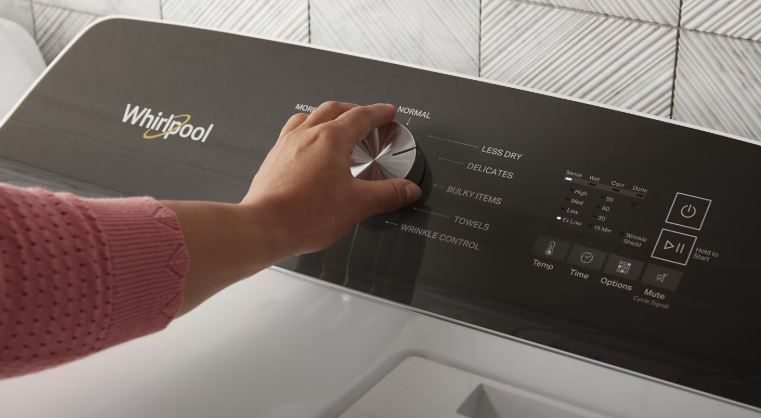

How Do I Reset My Whirlpool Duet Dryer F01?
Error code F01 indicates an electronic control board failure or communication error between control boards. This serious error often requires component replacement but try resets first.
F01 means the main control board detected a stuck button, lost communication with the interface board, or experienced internal processor failure.
Perform the extended power reset for F01 errors. Unplug the dryer for 10 minutes (longer than standard resets). This extended period allows deeper memory clearing.
While unplugged, press every button on the control panel three times each. This ensures no buttons remain physically stuck causing the control board to register continuous press signals.
Reconnect power and immediately enter diagnostic mode. For most Duet models: press the button sequence More Time + Less Time + More Time + Less Time + More Time within 5 seconds of powering on.
The diagnostic display shows “88” then scrolls to “00” if diagnostic mode activated successfully. If F01 reappears instead, the control board has failed and needs replacement.
If diagnostics load properly, run the manual test sequence. Press Start to advance through each test. Watch for which test triggers the F01 code. This identifies the specific failed circuit.
What else?
Check all wire harness connections between the control panel and main control board. Loose or corroded connectors cause communication failures triggering F01. Disconnect and reconnect each harness firmly.
Inspect control board for visible damage. Look for burnt components, discolored areas, or bulging capacitors. Physical damage requires board replacement—resets cannot fix hardware failures.
F01 errors appearing after power outages or surges usually indicate permanent electronic damage. The voltage spike damaged sensitive circuits beyond repair. Replace the control board ($150-300).
Intermittent F01 codes (appears then disappears randomly) suggest loose connections or environmental issues. Check for moisture exposure, excessive heat, or vibration-loosened connectors.
Some technicians report success by reflowing solder joints on control boards showing intermittent F01 errors. This advanced repair requires specialized equipment and electronics expertise—not recommended for DIYers.
Advanced Reset Procedures for Persistent Problems
When basic resets fail, advanced procedures target specific subsystems within the dryer’s electronic architecture.
The factory default reset erases all user settings and returns the dryer to original factory configuration. This proves useful after multiple failed repairs or when purchasing a used dryer with unknown history.
Enter service mode by unplugging the dryer, then plugging it back in while simultaneously holding both Temp buttons for 8 seconds. The display shows “SF” (service mode).
Navigate service menus using cycle selector buttons. Find the “Factory Reset” option (location varies by model year). Select and confirm when prompted.
The dryer beeps three times and all display segments illuminate briefly. Power cycles automatically and returns to normal operation with factory settings restored.
EEPROM reset clears permanent memory where calibration data lives. This radical step should be last resort—it erases manufacturer calibrations potentially affecting performance.
Access EEPROM reset through diagnostic mode. Enter diagnostics, navigate to “EEPROM Clear” using temp buttons. Press and hold Start for 10 seconds to confirm.
The dryer requires recalibration after EEPROM reset. Run five automatic cycles with mixed loads allowing the control board to relearn optimal settings for your home’s conditions.
Communication protocol reset addresses models showing multiple error codes simultaneously. This suggests communication failures between control boards rather than actual component problems.
Disconnect both wire harnesses between the control panel and main board. Wait 2 minutes, then reconnect ensuring positive clicks. This forces new communication handshake when power restores.
For models with separate motor control boards (2015+ models), reset that subsystem by disconnecting its wire harness for 5 minutes separately from main power disconnect.
Prevention: Keeping Your Duet Dryer Running Smoothly
Regular maintenance prevents most electronic glitches requiring resets. These simple habits protect sensitive control components:
- Install a whole-house surge protector. These $200-400 devices protect all appliances from power spikes that damage control boards. Essential if you experience frequent power fluctuations.
- Clean control panels monthly with electronic-safe cleaner (View on Amazon). Avoid water, harsh chemicals, or abrasive scrubbers. Moisture seeping behind panels causes corrosion and shorts.
- Ensure proper ventilation around the dryer. Excessive heat buildup in laundry rooms affects control board components. Maintain 3+ inches clearance around the dryer.
- Use the dryer regularly. Electronics deteriorate faster with infrequent use. Capacitors dry out, solder joints crack from thermal cycling. Weekly use keeps components exercised.
- Avoid overloading. Excessive weight strains motors and belts, causing mechanical failures that trigger electronic errors. Fill drums only 3/4 full.
- Clean moisture sensors monthly. Sensor deposit buildup causes the control board to receive false readings, storing error data that accumulates over time.
- Address small problems immediately. Ignoring minor issues causes cascading failures. A sticking button today becomes control board failure tomorrow if ignored.
- Document your dryer’s normal behavior. Knowing typical cycle times, sounds, and performance helps you quickly identify when problems develop before they worsen.
When Resets Don’t Work: Next Steps
If you’ve attempted all reset procedures without success, hardware failure likely exists requiring component replacement.
Failed control boards cost $150-300 plus labor. Signs include burnt smell, visible damage, or persistent error codes after successful diagnostic mode entry.
Damaged control panels run $100-200. Replace when buttons don’t register mechanically or displays remain dark despite power.
Intermittent problems frustrate both owners and technicians. If resets temporarily work but issues return within days, temperature-sensitive component failure exists.
Professional diagnostics use oscilloscopes and circuit testers (View on Amazon) unavailable to DIYers. These tools identify weak components before complete failure.
Consider dryer age versus repair costs. Dryers averaging 10+ years may not justify expensive control board replacement. Compare repair estimates against replacement costs.
Extended warranties sometimes cover electronic failures. Check purchase documentation before paying out-of-pocket for repairs.
Online troubleshooting communities offer model-specific advice. Search for your exact model number and error code—other owners may have discovered unique solutions.
Manufacturer support provides technical guidance. Whirlpool’s customer service accesses service bulletins addressing known issues with specific model runs.
Also Read:
- Why Your Whirlpool Duet Dryer Won’t Start But Beeps (Fixed!)
- Why Your Whirlpool Duet Dryer Won’t Heat Up (Fixed!)
Frequently Asked Questions
How long should I unplug my Whirlpool Duet dryer to reset it?
Unplug for minimum 5 minutes for standard resets clearing volatile memory. Extended resets for serious error codes like F01 require 10 minutes unplugged. Shorter periods don’t fully discharge capacitors or clear control board memory. For hard-wired installations, flip both circuit breakers off for the same duration.
Why does my dryer need frequent resets?
Frequent reset needs indicate failing control board components, poor electrical connections, or environmental problems. Control boards deteriorating from age develop weak circuits requiring periodic resets. Loose wire harnesses cause intermittent communication errors. Excessive moisture or heat accelerates component degradation. Address the root cause rather than relying on repeated resets.
Can I reset my Whirlpool dryer without unplugging it?
Most effective resets require full power disconnection. However, the control panel button combination reset (holding Signal + another button for 3 seconds) works with power connected. This clears panel memory but not deep control board errors. For comprehensive reset clearing all error codes, unplugging remains necessary.
What does it mean when the reset doesn’t fix the problem?
Failed resets indicate hardware failure rather than software glitches. Physical component damage won’t respond to electronic resets. Common hardware failures include burnt control boards, broken sensors, failed switches, or damaged wire harnesses. These require component replacement. Run diagnostic tests to identify which specific part failed.
How do I reset the moisture sensors on my Whirlpool Duet dryer?
Clean sensors thoroughly with isopropyl alcohol first. Then press and hold “More Time” + “Power” simultaneously for 5 seconds while dryer is off. Display shows “Sen” confirming sensor reset mode. Run three consecutive automatic cycles with identical small loads allowing the control board to recalibrate moisture detection. First cycle may be inaccurate while recalibration occurs.
Will resetting my dryer erase my saved settings?
Standard power resets preserve saved user preferences stored in permanent memory. The factory default reset erases all custom settings returning the dryer to original configuration. This affects favorite cycles, signal volume, and language settings. Normal troubleshooting resets don’t affect saved preferences—only the factory reset procedure does.
Get Your Whirlpool Duet Dryer Back to Normal
Most electronic glitches respond to proper reset procedures. Start with the basic 5-minute power reset before progressing to advanced methods.
Document your specific symptoms and error codes. This information helps you choose the correct reset procedure and assists technicians if professional service becomes necessary.
Remember that resets fix electronic problems but can’t repair failed physical components. Use resets as diagnostic tools—if they temporarily work but problems return, hardware replacement is needed.
Your Whirlpool Duet dryer is a sophisticated appliance designed for years of reliable service. Proper maintenance and timely resets when needed keep it running smoothly without expensive repairs.
