Your LG dryer keeps flashing that dreaded D90 code, but you’ve already checked everything you can think of. The lint trap is spotless, the vent hose looks perfectly clear, and you even went outside to vacuum the duct. Yet that persistent D90 error keeps showing up, seemingly laughing at all your cleaning efforts.
This frustrating scenario affects thousands of LG dryer owners every year who discover that “no blockage” doesn’t actually mean “no problem.” While the D90 code indicates 90% airflow restriction, the real culprits are often hidden obstructions, installation issues, or sensor malfunctions that create false readings. Understanding what triggers this code beyond the obvious visible blockages becomes essential when you’re dealing with an LG dryer D90 no blockage situation.
This comprehensive guide will help you solve the D90 mystery when there’s no obvious blockage in sight. We’ll explore hidden restriction points, sensor calibration issues, installation problems, and systematic troubleshooting approaches that actually work. Whether your dryer is brand new or has been running for years, you’ll find practical solutions here.
Quick LG D90 Troubleshooting Checklist
Before diving deep, try these quick fixes:
- Reset the Sensor – Unplug your dryer for a full 5 minutes, then run an empty test cycle
- Check Hidden Areas – Inspect the transition duct, wall vent, and exterior vent cap thoroughly
- Verify Installation – Make sure you have proper duct length, diameter, and configuration
- Test Airflow – Go outside and feel the exhaust strength while the dryer is running
- Inspect Blower Wheel – Remove the rear panel and look for lint buildup inside
- Clean Moisture Sensors – Wipe the metal bars inside the drum with rubbing alcohol
- Examine Duct Material – Replace any flexible plastic or foil with rigid metal ducting
Understanding the LG Dryer D90 Code
The Flow Sense system in your LG dryer continuously monitors exhaust airflow throughout drying cycles. This isn’t just a fancy feature; it’s actually a safety technology designed to protect against fire hazards from restricted venting. Understanding how it works will help you solve persistent D90 issues more effectively.
What Is the D90 Code?
Direct Answer: The LG dryer D90 code signals that the Flow Sense system has detected a 90% airflow restriction. However, when no visible blockage exists, the issue typically stems from hidden lint accumulation in the blower housing, crushed or kinked transition ducts, excessive vent length exceeding 25 feet, improper vent diameter below 4 inches, faulty airflow sensors providing false readings, or installation configurations with too many elbows restricting airflow. The “no blockage” mystery usually gets resolved by checking these less obvious restriction points that standard lint trap and vent hose inspections miss completely.
LG dryers use a tiered alert system to warn you about airflow problems:
Alert Level: Low
- Code: D80
- Airflow Restriction: 80% blocked
- Meaning: Minor restriction detected
- Action Required: Clean venting soon
Alert Level: High
- Code: D90
- Airflow Restriction: 90% blocked
- Meaning: Severe restriction detected
- Action Required: Immediate cleaning needed
Alert Level: Critical
- Code: D95
- Airflow Restriction: 95% blocked
- Meaning: Critical blockage
- Action Required: Stop using until cleared
How Flow Sense Technology Works
The system works by measuring back-pressure in your exhaust system, with sensors detecting any resistance to airflow during operation. Higher resistance levels trigger increasingly severe alert codes, giving you early warning before things get dangerous.
A pressure switch monitors air movement continuously throughout each drying cycle. This switch responds to even subtle changes in exhaust efficiency, meaning that even minor restrictions will register on these sensitive sensors. The control board then calculates restriction percentages mathematically by comparing current airflow against what it knows to be optimal performance. When the dryer detects that 90% restriction threshold, it triggers the D90 alert.
LG actually designed this system after analyzing the root causes of dryer fires. Consider this: over 15,000 residential fires occur annually in the United States because of dryer vent issues. Flow Sense provides that crucial early warning system that can prevent these disasters from happening in your home.
Why D90 Appears Without Obvious Blockage
Hidden lint accumulation happens in places you simply can’t see during a routine inspection. The blower housing, for instance, collects lint that bypasses the trap, and this internal buildup can restrict airflow dramatically without you ever knowing it’s there.
Crushed transition ducts behind your dryer are another common culprit. When you push the dryer back against the wall during installation or after cleaning, you might be compressing flexible ducts without realizing it. Even partial crushing is enough to trigger the sensor and give you that frustrating LG dryer D90 no blockage error.
Excessive vent run length creates natural resistance even when everything is clean. Each foot of ducting adds some level of restriction to the system, so runs that exceed the manufacturer’s specifications will cause D90 codes eventually. Similarly, improper installation with too many turns compounds the restriction problem since each 90-degree elbow is equivalent to adding 5-10 feet of straight duct to your system. Multiple turns create significant resistance that the sensors pick up immediately.
Sometimes the problem isn’t physical at all. Faulty sensors can occasionally provide false readings since electronic components tend to drift over time. A miscalibrated sensor might report restrictions that don’t actually exist, leaving you scratching your head while staring at a perfectly clean lint trap.
How Do I Fix the D90 on My LG Dryer?
Systematic troubleshooting will help you identify the actual cause efficiently without wasting time or money. The key is to start with simple solutions before moving on to complex disassembly, following a methodical approach that covers all the possible problem areas.
Step 1: Perform Complete Vent System Inspection
Start by disconnecting your dryer from power completely. Pull the unit forward away from the wall so you can access the entire vent system from the dryer connection all the way to the exterior exhaust point.
Remove the transition duct that connects your dryer to the wall vent. Inspect this flex duct carefully for any signs of crushing, kinking, or damage. If it looks compressed or damaged at all, replace it before going any further.
Next, shine a flashlight through the wall vent duct and look for visible obstructions or lint buildup inside. If you can access it, use a vent cleaning brush (View on Amazon) to clear out anything you find in there.
Go outside and inspect your exterior vent cap while you’re at it. Remove the cover and look inside the duct opening because bird nests, rodent debris, and compacted lint clumps often hide in this spot.
Also check that the vent cap damper operates smoothly. The flap should open freely when air flows through it, and a stuck or broken damper will restrict airflow significantly enough to trigger the D90 code.
Step 2: Measure and Verify Vent Configuration
Grab a tape measure and calculate your total vent run length from the dryer to the exterior, including all horizontal and vertical sections. You’ll need to calculate the equivalent length by adding extra footage for each elbow in the system.
LG specifies a maximum of 25 feet for 4-inch rigid metal duct installations. However, you need to subtract 5 feet for each 90-degree elbow in your system and 2.5 feet for each 45-degree elbow. This means that if you have two 90-degree elbows, your maximum straight duct length is actually only 15 feet.
Make sure you have a consistent 4-inch diameter throughout the entire run. Reducers or smaller sections anywhere in the line create bottlenecks that will definitely cause problems. While you’re measuring, count the number of elbows in your installation as well. More than two 90-degree turns typically causes airflow issues even in otherwise compliant installations.
Document your measurements and configuration, then compare everything against the specifications in LG’s installation manual. If your installation doesn’t comply with these specs, you’ll need to modify it to solve your LG dryer D90 no blockage problem permanently.
Step 3: Clean Internal Blower Housing
Here’s where many people find the real problem. The blower wheel sits right behind the drum, constantly collecting lint that this critical area rarely gets the attention it needs. Accumulated lint in the blower housing causes most “no blockage” D90 codes because it’s simply not visible during routine cleaning.
Unplug your dryer and remove the lower front panel (the exact method varies by model, but most use either clips or screws). You can find model-specific instructions in online videos if you need guidance.
Locate the blower wheel housing, which is typically on the right side of the dryer. Remove the housing cover to expose the blower fan, and prepare yourself for what you’re about to see because there’s usually a significant amount of lint accumulation in there.
Vacuum out all the lint from the blower wheel and housing using a narrow crevice tool (View on Amazon) to reach all the tight areas. Remove every single bit of lint buildup you can find. While you’re in there, inspect the blower wheel itself for any damage or wobbling since bent blades will reduce airflow efficiency. If you find damage, you’ll need to replace the wheel, which typically costs between $30 and $60.
Step 4: Test and Clean Moisture Sensors
The moisture sensors inside your drum can actually affect Flow Sense readings in ways you might not expect. When residue builds up on these sensors, it confuses the system and can create false airflow restriction alerts.
Locate the two metal sensor bars inside the drum (they sit on either the front or rear drum wall and look like metal strips about 3-4 inches long). Dampen a cloth with rubbing alcohol and wipe both sensor bars thoroughly to remove all residue. Fabric softener and detergent buildup particularly affects sensor sensitivity, so make sure you get them completely clean.
Let the sensors dry completely before testing anything. Plug your dryer back in and run an empty air fluff cycle to see if the D90 code still appears. For future maintenance, clean these sensors monthly to prevent residue accumulation. Always use rubbing alcohol for this task, never just water alone.
Step 5: Check for Installation Problems
Sometimes the issue isn’t something that needs cleaning but rather an installation problem that creates inherent restrictions. These systemic issues require correction rather than simple cleaning, so you’ll want to review your entire installation against the manufacturer’s requirements.
First, verify that your dryer sits level both front-to-back and side-to-side. An unlevel installation can actually affect the internal airflow paths in ways you wouldn’t expect. Use a carpenter’s level to check this properly.
Make sure you have adequate clearance behind the dryer as well. LG specifies a minimum of 6 inches from the wall, and insufficient space will crush your transition duct even if it looked fine initially.
Check whether rigid metal duct was used for your installation. Flexible plastic or foil ducts restrict airflow and accumulate lint much faster than rigid metal. If you’re using flexible material, that could be your entire problem right there.
Inspect for periscope-style ducts behind the dryer while you’re checking things out. These space-saving solutions sometimes create more restriction than they’re worth, so you might want to consider replacing them with a proper offset configuration.
Finally, verify that your outdoor vent termination is at an appropriate height and location. Vents positioned too close to the ground collect debris more easily, so proper height and positioning help prevent blockages from forming in the first place.
LG Dryer D90 Reset Procedures
Resetting the Flow Sense system clears temporary errors and should be one of your first troubleshooting steps. This simple process often resolves the issue before you need to attempt any complex repairs. There are multiple reset methods that address different scenarios, so try them in order.
Basic Power Reset Method
Unplug your dryer from the wall outlet completely. Don’t just turn off the dryer using its controls; you need to physically disconnect the power to ensure a complete electrical reset.
Wait exactly 5 minutes before reconnecting power. This extended wait time allows all the capacitors inside to discharge fully, and shorter waits won’t completely clear the system memory like you need.
Plug the dryer back in firmly, making sure the plug seats completely in the outlet. Loose connections can create intermittent electrical issues that might contribute to false error codes.
Here’s an important tip: don’t load clothes immediately after the reset. Run an empty air fluff cycle first to allow the system to recalibrate its sensors properly.
Watch carefully to see whether the D90 code reappears during that empty cycle. If the code is absent during empty cycles but shows up with loads, that suggests load-related issues rather than actual restrictions. If it reappears right away, you still have an actual restriction somewhere that needs to be addressed.
Flow Sense System Recalibration
After you’ve cleaned vents and internal components, you should recalibrate the system to teach the sensors about the current airflow characteristics. Proper calibration prevents those annoying false alerts from coming back.
Make absolutely sure all your vent cleaning is complete before starting the calibration process. The system learns from whatever conditions currently exist, so if you calibrate with dirty vents, you’re just setting yourself up for ongoing problems.
Run three consecutive empty cycles on high heat using the sensor dry setting (not timed dry). Each cycle should run for about 20-30 minutes to give the sensors enough data to work with.
Don’t open the door between these calibration cycles. Let the dryer cool down naturally after each one, which allows the sensors to complete their adjustment process properly.
After you’ve finished all three calibration cycles, test the dryer with small loads first. Start with lightweight items like sheets and gradually increase the load size while verifying that no codes appear.
Button Combination Reset
Some LG models respond to specific button sequences that force deeper system resets. Try this method if the basic reset procedures haven’t worked for you.
Press and hold both the Temperature and Signal buttons at the same time. Hold them down for exactly 5 seconds, then release when you hear beeps or see the display change.
Be aware that some models require different button combinations (like Child Lock plus Time buttons instead). Consult your specific model’s manual for the exact sequence, or check online forums where other owners share model-specific instructions.
The display might show diagnostic codes or enter a test mode after this reset. If that happens, exit test mode by unplugging the dryer briefly, then reconnect and test normal operation.
This type of reset clears all learned parameters and returns everything to factory defaults. Any previous calibration data gets erased completely, giving the system a fresh start from scratch.
When Resets Don’t Work
If you still see persistent D90 codes after trying multiple reset procedures, that indicates you have an actual physical problem rather than just a sensor glitch. Electronic resets simply can’t fix physical restrictions, so further investigation becomes necessary at this point.
Pay attention to how many cycles run before the code reappears. An immediate return suggests you have a severe restriction somewhere, while delayed return indicates marginal airflow that’s just barely acceptable.
Note whether codes appear with specific load types. If heavy towels trigger codes while lightweight items don’t, that pattern suggests your system doesn’t have adequate airflow capacity for dense loads.
Check if codes appear during specific portions of the cycle as well. A D90 that shows up during initial heating suggests different issues than one that appears during the actual drying phase. The timing provides important diagnostic clues.
Consider getting a professional duct inspection if resets consistently fail to solve the problem. Specialized cameras can inspect internal duct conditions and reveal hidden problems that you simply can’t see otherwise.
LG Dryer Flow Sense D90 Deep Dive
Understanding the Flow Sense technology in more depth helps you diagnose persistent issues more effectively. This system’s sophistication can create troubleshooting challenges, but knowledge gives you the power to solve problems more efficiently.
Flow Sense Sensor Location and Function
The primary airflow sensor sits somewhere in the exhaust duct path where it can measure air pressure differential across the entire system. A higher differential indicates greater restriction somewhere in the line.
A thermistor also measures exhaust air temperature as part of the monitoring process. Temperature patterns provide additional information about airflow efficiency, allowing the system to detect restriction even without obvious pressure changes.
The control board processes data from multiple sensors simultaneously to create a comprehensive picture of what’s happening with airflow. Complex algorithms built into the system determine restriction percentages based on all this combined data.
While sensor failure rates remain relatively low, they do occur occasionally. Years of exposure to heat cycles affect electronic components over time, and failed sensors will consistently report false restrictions regardless of actual conditions.
Common False D90 Triggers
Overloading your dryer creates temporary restrictions that the sensors legitimately detect. When you stuff in excessive clothes, they compress against the vent openings inside the drum, and the sensor correctly interprets this as a momentary blockage.
Using excessively long vent configurations can trigger codes even when your installation meets building code requirements. The setup might be legal, but it exceeds your specific dryer’s capability, forcing the system to function at maximum capacity continuously.
Seasonal temperature changes actually affect sensor readings in ways most people don’t realize. Cold outside air increases back-pressure in the exhaust system, which is why you might notice more false D90 alerts during winter months.
Operating your dryer during high wind conditions causes similar issues. Strong winds create back-pressure at the exterior vent opening, and the sensor interprets this external resistance as an internal restriction.
Power fluctuations can confuse sensor calibration as well. Voltage drops or surges affect the readings that sensors provide, and electrical instability in your home can create intermittent false codes that seem to come out of nowhere.
Differentiating Real vs False Restrictions
Run your dryer and go outside to feel the airflow at the exterior vent. Strong, steady exhaust indicates proper operation, while weak or intermittent flow confirms you have an actual restriction somewhere.
Try the tissue test at your exterior vent for a visual confirmation. Hold a tissue near the opening during dryer operation, and it should blow outward vigorously if everything is working correctly.
Compare your current dry times to previous performance as well. Gradually increasing cycle times suggest developing restrictions building up over time, while sudden changes more likely indicate sensor or electrical issues rather than physical blockages.
Monitor the temperature inside your dryer during operation. Excessive heat buildup indicates poor ventilation and confirms real problems, but if the dryer operates relatively cool despite showing codes, you’re probably dealing with false sensor readings.
Test the dryer with minimal loads versus full loads to see if there’s a pattern. Codes that only appear with full loads suggest your system has marginal capacity, while codes that show up regardless of load size point toward sensor problems.
Hidden Restriction Points Creating D90 Codes
Standard lint trap and vent cleaning misses several critical areas where restrictions actually develop. These hidden restriction points cause most of those mysterious LG dryer D90 no blockage situations that leave owners frustrated. Systematic inspection of these areas usually finds the real culprit.
Blower Wheel Lint Accumulation
Lint bypasses your trap through tiny gaps in the system and enters the blower housing where it accumulates over years of use. This hidden lint creates severe restrictions that you’d never discover during routine maintenance.
The blower wheel spins at high RPM, and centrifugal force throws lint outward where it packs against the housing walls. This hardened mass of compacted lint significantly restricts airflow even though you can’t see it without disassembly.
Even just a quarter-inch layer of packed lint reduces efficiency dramatically. Your blower has to work harder while achieving less actual airflow, which reliably triggers D90 codes every time.
Inspecting the blower housing requires partial dryer disassembly, which is why most owners never check this area at all. Professional technicians routinely find massive accumulation here when they investigate LG dryer D90 no blockage complaints.
How often you need to clean depends on your usage patterns and the types of fabrics you dry. Heavy dryer users should plan on annual blower cleaning, while minimal use extends this interval to every 2-3 years.
Transition Duct Problems
The flexible duct connecting your dryer to the wall vent fails more frequently than most people realize. These ducts get crushed, tear over time, and collect lint faster than rigid ducting. Many D90 issues originate right here in this transition section.
Flexible vinyl or foil ducts actually violate current building codes in many jurisdictions. These materials restrict airflow more than rigid options and accumulate lint much faster. They’re also prone to tearing, which creates air leaks that reduce exhaust efficiency.
Crushed transition ducts happen when you push your dryer too close to the wall during installation or after cleaning behind it. Even slight compression reduces airflow significantly, and this restriction point hides behind your appliance where you can’t see it.
Transition ducts longer than 8 feet create inherent restriction even when they’re in perfect condition. LG actually recommends keeping these transitions under 3 feet for optimal performance. Excessive length adds unnecessary resistance that contributes to false D90 readings.
Inspect your transition duct at least annually and replace it as needed. These cost only $15-$30 and install in just a few minutes, making this simple maintenance one of the best ways to prevent D90 codes from developing.
Exterior Vent Cap Issues
Vent caps equipped with screen mesh violate code requirements in many jurisdictions because screens collect lint so rapidly. Many older homes still have these problematic caps installed, and they’re a common source of blockages.
Damper flaps can stick due to lint buildup or ice accumulation during winter. Frozen dampers in cold climates restrict airflow severely, and this seasonal issue often confuses troubleshooting efforts since the problem comes and goes with the weather.
Bird nests and wasp nests build up in exterior vents surprisingly often. These can completely block airflow, and the obstruction sits far outside your normal inspection range where you wouldn’t think to look.
Landscaping growing around your vent opening restricts airflow more than you’d expect. Bushes and vines gradually block the vent, and this slowly worsening restriction goes unnoticed until the D90 code finally appears.
Vent caps facing into prevailing winds experience back-pressure issues regularly. Strong winds create resistance that your sensor detects and interprets as internal restriction, affecting how frequently codes appear.
Wall Cavity Duct Problems
Ducts running through your walls accumulate lint that remains invisible from either end of the system. These hidden sections might extend many feet with no way for you to reach them for cleaning. Lint builds up inside over years without anyone knowing.
Poorly sealed duct joints leak lint into your wall cavities instead of exhausting it outside. This escaping air never reaches the exterior, but your dryer detects the pressure loss and interprets it as restriction.
Sagging ducts inside walls create natural lint traps where gravity takes over. Flexible ducts pull downward over time, and lint settles into these low points where it gradually builds up.
Crushed ducts inside walls result from construction damage that happened during renovations or even original building. Workers inadvertently damage ducts they can’t see, and these hidden restrictions remain undiscovered for years.
Wall cavity inspections require professional equipment like specialized inspection cameras. These tools visualize internal duct conditions and reveal problems that are literally impossible to see any other way.
Installation Issues Causing D90 Without Blockage
Improper installation creates systemic restrictions that aren’t really blockages but rather design limitations. These problems won’t improve with cleaning; you need to correct the installation itself to prevent recurring LG dryer D90 no blockage codes.
Vent Length Exceeding Specifications
LG specifies a maximum 25-foot equivalent length for their dryers, which includes actual straight length plus deductions for elbows. Exceeding this maximum creates a permanent restriction that will trigger codes no matter how clean you keep things.
Calculate your equivalent length properly by accounting for every turn in the system. Each 90-degree elbow forces you to subtract 5 feet from your allowable straight duct length. If you have two elbows, your maximum straight run drops to just 15 feet.
Long vent runs might work fine initially but trigger codes over time as slight lint accumulation has a much bigger impact. Short runs tolerate more lint before problems develop, while long runs are far less forgiving.
Reducing vent length requires rerouting your ducts, which can be a major modification that needs professional help. The improvement in performance is dramatic though, often solving persistent D90 issues permanently.
Consider relocating your dryer closer to an exterior wall if possible. This minimizes vent length naturally and solves many installation-related issues all at once.
Insufficient Vent Diameter
Some installations mistakenly use 3-inch ducts instead of the required 4-inch diameter. This 25% reduction in cross-sectional area effectively doubles the restriction, causing D90 codes to appear either immediately or gradually as lint accumulates.
Your duct diameter must maintain a full 4 inches throughout the entire run without exception. Transitions that reduce diameter anywhere create bottlenecks, and even short reduced sections cause significant problems.
Verify the actual inside diameter at all connection points in your system. Measure the inside dimension, not the outside, because some ducts appear correct externally but have thick walls that reduce the interior space.
Upgrading to proper 4-inch duct diameter throughout requires modifying your vent system. Wall penetrations might need enlarging, making this somewhat invasive work, but it improves performance permanently.
Never try using duct tape to connect mismatched sizes as a shortcut. This temporary fix fails quickly and creates more problems. Proper diameter maintained throughout the entire system remains absolutely essential.
Excessive Elbow Quantity
Multiple direction changes create cumulative restriction that adds up quickly. Each turn adds resistance to the system, and installations with three or more elbows commonly trigger D90 codes even when everything is perfectly clean.
Elbow restriction varies significantly based on the turn angle involved. Standard 90-degree elbows restrict airflow the most, while 45-degree elbows restrict less but still contribute meaningfully to overall system resistance.
Stacked elbows (back-to-back turns without straight duct between them) severely restrict airflow and should never occur in dryer venting. Even technically code-compliant installations perform poorly when they include stacked elbows.
Reducing your elbow count requires vent rerouting that might be simple or complex. Sometimes basic path changes eliminate unnecessary turns, while other situations demand structural modifications.
Use long-radius elbows instead of standard short-radius ones wherever possible. These gradual turns restrict airflow about 20-30% less than sharp turns, providing measurable improvement.
Improper Duct Material
Flexible vinyl and foil ducts restrict airflow excessively compared to rigid options. These materials compress easily under their own weight and have rough interior surfaces that create turbulence. Lint also accumulates much faster in flexible ducts than smooth rigid ones.
Rigid metal duct provides smooth airflow paths with minimal resistance. Aluminum or galvanized steel both work well for this application. These materials resist compression and clean much easier than flexible alternatives.
Flexible aluminum duct is acceptable but only for short transition sections connecting the dryer to your wall vent. Limit this flexible material to 3 feet maximum length, and never use it for the duct sections running through walls.
Corrugated interior surfaces create turbulence and act as lint traps throughout the entire run. Smooth interior ducts perform significantly better, and surface finish affects overall efficiency more dramatically than most people realize.
Replacing improper duct material with rigid metal improves airflow immediately and permanently. This fix solves many chronic LG dryer D90 no blockage issues, and while material upgrade costs vary, they prove worthwhile long-term.
Sensor and Electrical Issues
Sometimes the real problem isn’t airflow at all but rather a sensor malfunction or electrical issue. Electronic components fail or drift over time, and these problems require different solutions than cleaning or installation modifications.
Testing the Flow Sense Sensor
The pressure sensor can be tested using a multimeter if you’re comfortable with basic electrical diagnostics. This requires accessing the control board area, so consult your service manual to locate the sensor on your specific model.
Disconnect the sensor from the control board and set your multimeter to resistance mode. Measure the sensor’s resistance according to the specifications provided in your service documentation.
Blow gently into the sensor port while watching your multimeter reading. The resistance should change noticeably with pressure application, and no change indicates the sensor has failed completely.
Sensor replacement typically costs between $40 and $80 for the part itself. Installation difficulty varies significantly by model, with some requiring extensive disassembly to access the sensor location.
Consider getting professional diagnosis before replacing sensors on your own. Misdiagnosis wastes money on unnecessary parts, and technicians have specialized testing equipment that provides more definitive answers.
Control Board Problems
The main control board processes all the sensor data and makes decisions about when to trigger alerts. Board failures create false restriction alerts that present identically to actual blockages, making diagnosis tricky.
Visual inspection sometimes reveals obvious board damage like burnt components or corrosion. Look for signs of water damage from roof leaks, which can affect the electronics without creating obvious external symptoms.
Control boards rarely fail completely in one dramatic event. Partial failures affect specific functions independently, so your Flow Sense circuitry might fail while everything else works perfectly fine.
Board replacement typically costs between $150 and $300 depending on your model. This represents a significant expense that demands confident diagnosis before you commit. Make sure you’ve confirmed actual sensor and physical restrictions first.
Some appliance parts suppliers offer board testing services. You can send your board for professional evaluation costing around $30-$50, which confirms failure before you invest in an expensive replacement.
Wiring and Connection Issues
Loose connections create intermittent sensor readings that come and go unpredictably. Normal dryer vibration gradually loosens terminals over time, and these poor connections cause erratic behavior that mimics actual restrictions.
Inspect all wire harness connections leading to your sensors carefully. Ensure they seat firmly and completely in their connectors. Wiggle each connection while watching for any changes in behavior or error codes.
Check for corroded terminals or damaged wire insulation throughout the system. Green corrosion indicates moisture exposure somewhere, while damaged insulation often suggests rodent activity in or around your dryer.
Clean any corroded connections using electrical contact cleaner, then apply dielectric grease to prevent future corrosion. These simple fixes often restore proper function without any parts replacement.
Replace damaged wiring harnesses completely rather than attempting splice repairs. Proper replacement ensures long-term reliability, while spliced repairs tend to fail repeatedly.
Professional Duct Cleaning vs DIY
Deciding between professional service and DIY cleaning depends on several factors specific to your situation. Understanding both approaches helps you choose the most appropriate and cost-effective option.
When Professional Cleaning Is Necessary
Vent runs exceeding 15 feet in length benefit significantly from professional cleaning equipment. Specialized brushes and high-powered vacuums reach these distances effectively, while DIY tools lack the necessary reach to clean thoroughly.
Multi-story vent runs that include vertical sections definitely require professional equipment and techniques. Vertical sections need special approaches because gravity works against DIY cleaning attempts.
Wall cavity ducts need professional inspection cameras to visualize conditions you literally cannot see otherwise. Camera inspections typically cost around $100-$200 and reveal hidden problems causing persistent D90 codes.
If you’ve tried DIY cleaning but still get persistent D90 codes, professional help becomes warranted. Experienced technicians have seen every possible configuration and know where to look for hidden restrictions that homeowners miss.
Professional Cleaning Process
Professional technicians start by inspecting your entire vent system before cleaning anything. They identify restriction locations first, ensuring their cleaning approach addresses actual problem areas rather than just going through motions.
High-powered rotary brushes scour duct interiors clean using equipment that can reach 50+ feet with proper setup. Brush rotation effectively dislodges even packed lint that’s been accumulating for years.
Industrial vacuums capture all dislodged lint as brushes work, preventing lint from redistributing inside your home. Proper containment protects your indoor air quality during the cleaning process.
Exterior vents get cleaned and inspected as part of comprehensive service. Technicians verify damper operation and clear any debris, ensuring the complete system functions optimally.
Many professional services include dryer interior cleaning along with duct work. They’ll clean your blower housing and internal ducting as part of their comprehensive approach, preventing problems from recurring quickly.
DIY Cleaning Effectiveness
DIY cleaning works quite well for simple, short vent runs without complex configurations. Straight runs under 10 feet clean relatively easily, and homeowners can save between $100 and $200 by handling this themselves.
Proper tools make a significant difference in how effective your DIY efforts will be. Flexible dryer brush cleaning kits (View on Amazon) cost around $20-$40 and reach typical residential vent distances adequately for straightforward installations.
Good vacuum attachments help remove loosened lint more completely. Shop vacuums work considerably better than household vacuum cleaners for this application because they have stronger suction that captures more debris.
DIY cleaning does have limitations in terms of reach and thoroughness. You simply can’t see inside your ducts to verify you’ve removed everything, meaning some lint inevitably remains despite your best efforts.
A balanced approach works well for many homeowners: perform annual DIY cleaning supplemented by periodic professional service. This maintains performance economically while ensuring thorough deep cleaning happens every 3-5 years.
Preventing Future D90 Codes
Proactive maintenance prevents D90 codes from recurring and saves you countless hours of frustration. Simple habits extend your dryer’s life while maintaining optimal efficiency, and prevention always beats troubleshooting after problems develop.
Regular Maintenance Schedule
Clean your lint trap before every single load without exception. This basic habit prevents most dryer issues before they start, and it takes only 5 seconds of your time.
Vacuum around and under your dryer monthly to capture lint that accumulates in surprising places. This prevents loose lint from entering the blower housing where it causes real problems.
Clean the moisture sensors monthly using rubbing alcohol to prevent residue buildup that affects accuracy. This task takes under one minute but prevents numerous false error codes.
Inspect and clean your exterior vent quarterly by removing the cap and checking for obstructions inside. This catches developing problems before they trigger persistent D90 alerts.
Schedule professional vent cleaning every 1-3 years depending on your usage patterns. Heavy users running 7+ loads weekly need annual service, while moderate use extends this interval to every 2-3 years.
Load Management Practices
Avoid overloading your dryer beyond the recommended capacity marked inside the drum. Excessive clothes restrict airflow through the drum interior and trigger false D90 alerts even when your venting is perfect.
Separate heavy items from lightweight ones rather than mixing them together. Combining towels with delicate fabrics overworks your dryer unnecessarily, and similar-weight loads dry much more efficiently.
Use appropriate heat settings matched to your fabric types. Excessive heat doesn’t actually speed up drying and just wastes energy while increasing the risk of triggering D90 codes.
Don’t add wet items to partially dry loads midway through cycles. This dramatically extends cycle time, and your dryer interprets the extended run as poor airflow rather than understanding you changed the conditions.
Remove lint from pockets before washing clothes in the first place. Items like tissues create excessive amounts of lint that eventually contribute to system buildup. Prevention at the washing stage reduces what enters your dryer.
Installation Best Practices
Use rigid metal duct for all permanent installations rather than flexible materials. This provides optimal airflow and longevity that pays back your investment through better performance.
Minimize vent length and eliminate any unnecessary turns in your routing. Straight, short runs perform best, and each extra foot or turn matters more than most people realize.
Seal all duct joints properly using foil tape or mastic sealant. Never use regular cloth duct tape, which fails quickly in dryer applications. Proper sealing prevents lint leaks that reduce efficiency.
Ensure adequate dryer clearance from walls by maintaining at least 6 inches minimum behind the unit. This prevents your transition duct from getting crushed when the dryer vibrates during operation.
Install vent caps without screens or overly restrictive designs on the exterior. Simple flapper-style caps work best for dryer applications, and you should avoid decorative caps that look nice but restrict airflow.
Testing Airflow After Repairs
Verification ensures your repairs actually solved the problem rather than just making you feel productive. Simple tests confirm proper airflow and prevent those disappointing moments when codes return after you thought everything was fixed.
Exterior Vent Airflow Test
Run your dryer on high heat for about 5 minutes, then go outside to your exterior vent. Feel the exhaust strength with your hand held near the opening.
Strong, steady airflow should blow your hand away from the vent with authority. Weak airflow indicates you still have restrictions somewhere, while hot air at least confirms the dryer is operating and producing heat.
Use tissue paper for visual confirmation that makes the test even more obvious. Hold a tissue near the vent opening, and it should blow outward forcefully if everything is working correctly.
Measure the temperature at the vent using an infrared thermometer if you have one available. Exhaust air should reach between 150-180°F on high heat settings, and lower temperatures suggest ongoing efficiency problems.
Compare current performance to what you remember from before if possible. Improved airflow confirms your repairs succeeded, while similar weakness means you still have work to do.
Cycle Time Monitoring
Dry a standard load of towels using the sensor cycle setting and time how long it takes. Compare this duration to what you know is typical cycle length for your dryer.
Standard loads should complete in roughly 40-60 minutes under normal conditions. Longer cycle times indicate remaining restrictions somewhere in the system, while shorter times confirm you’ve improved efficiency successfully.
Check your clothes for proper dryness at the cycle’s end as another confirmation. Damp items despite cycle completion suggest problems remain, while properly dried clothes confirm good airflow throughout.
Monitor for D90 code reappearance over the next several loads. Immediate return means your repairs didn’t address the actual problem, while codes only after many successful loads suggest you’ve achieved success.
Energy Consumption Comparison
Note your electricity usage before and after repairs if you have access to this data. Most smart meters provide detailed consumption information that reveals efficiency changes.
Efficient dryers use noticeably less energy per load than restricted ones. A 20-30% reduction in electricity consumption indicates successful repairs, and you should monitor over multiple loads for accuracy.
Feel your dryer’s exterior surfaces during operation as an additional check. Excessive heat radiating from the cabinet indicates poor internal ventilation, while cool exterior surfaces suggest proper airflow is exhausting heat appropriately.
Listen for unusual noises during operation that might indicate remaining problems. Restricted dryers often sound labored and struggle audibly, while smooth and quiet operation indicates everything is functioning properly.
FAQs

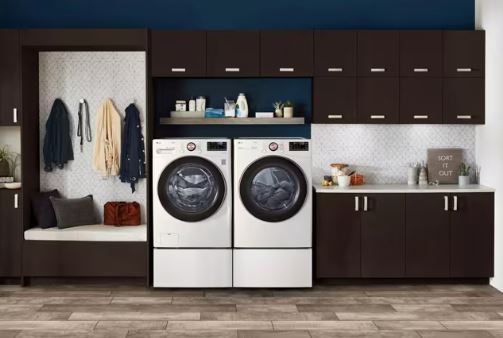

What is the D90 code on my LG dryer?
The D90 code means your Flow Sense system has detected 90% airflow restriction in the exhaust system. This indicates that air can’t flow properly through the venting, causing the dryer to measure excessive back-pressure throughout the cycle.
Flow Sense exists specifically to protect you against fire hazards from blocked vents. Over 15,000 dryer fires happen annually in the United States, with most resulting from lint-clogged exhaust systems that overheat.
D90 represents severe restriction that requires immediate attention. It’s one level below D95, which is the critical alert level, so you shouldn’t ignore this warning code even if the dryer still technically functions.
The code typically appears during normal cycle operation and may display continuously or come and go intermittently. Intermittent codes suggest marginal restrictions that worsen under certain conditions like heavy loads or extended run times.

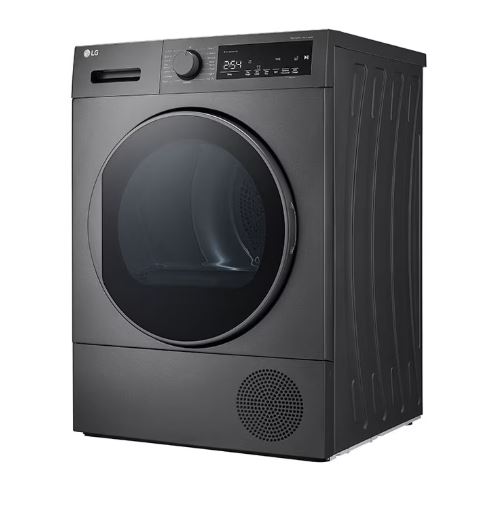

How do I fix the D90 on my LG dryer when nothing is blocked?
Start with a complete power reset by unplugging your dryer for a full 5 minutes. This clears temporary sensor errors and resets the system memory. After reconnecting, run empty calibration cycles to let sensors adjust.
Inspect those hidden restriction points that everyone misses, particularly the blower housing. Remove the front panel to access the blower wheel and vacuum out all accumulated lint thoroughly.
Check your transition duct for crushing or improper material that restricts flow. Replace any flexible vinyl or foil sections with rigid metal ducting, and make sure you maintain proper 4-inch diameter throughout the entire system.
Verify that your total vent length meets LG’s specifications. You’re limited to a maximum 25 feet minus 5 feet for each elbow in the system. Excessive length requires vent rerouting to solve permanently.
Clean your moisture sensors with rubbing alcohol since residue buildup affects Flow Sense accuracy in ways that create false restriction alerts.

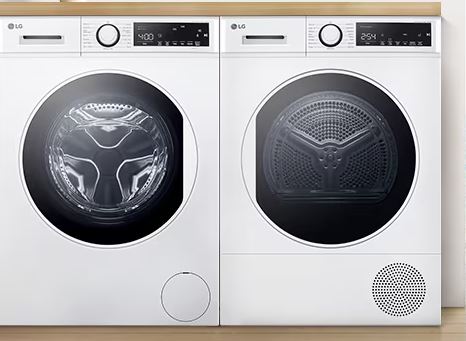

How do I reset the D90 code on my LG dryer?
Unplug your dryer completely for at least 5 minutes to fully reset the control board and sensors. Simply turning off the dryer isn’t enough; you need to physically disconnect power. Plug back in and run an empty air fluff cycle.
Some models reset using specific button combinations. Try pressing Temperature and Signal buttons simultaneously for 5 seconds. Check your owner’s manual for model-specific sequences since they vary.
After any physical cleaning work, run three consecutive empty cycles on high heat to recalibrate Flow Sense properly. This teaches the system about current airflow conditions and prevents false alerts from appearing.
Remember that resetting doesn’t fix actual restrictions in your venting system. It only clears sensor memory and recalibrates readings. Persistent codes after proper reset procedures indicate real problems that need physical repair.
What is Flow Sense D90 on LG dryers?
Flow Sense is LG’s proprietary airflow monitoring technology that continuously measures exhaust restriction throughout every drying cycle. The system uses pressure sensors to detect back-pressure and calculate how blocked your venting is.
D90 specifically means the system has detected that 90% of normal airflow is being blocked somewhere in your exhaust path. This high restriction level represents the second-highest severity alert (D95 is critical).
Flow Sense alerts appear as D80 for minor restriction, D90 for severe blockage, and D95 for critical situations. Each level represents increasing severity that demands progressively more urgent attention.
This technology was developed specifically to prevent fires and improve efficiency. Proper airflow extends your dryer’s lifespan significantly while also reducing energy consumption and shortening drying times.
Can I use my dryer with a D90 code showing?
Technically yes, the dryer will still run, but you absolutely shouldn’t continue using it. Operating with an active D90 code increases fire risk dramatically since restricted vents cause dangerous lint buildup and overheating inside the appliance.
The dryer will function but extremely inefficiently when restricted. Your clothes take much longer to dry than normal, and energy consumption increases significantly because the heating element works overtime.
Continued operation damages your dryer over time through unnecessary wear. The motor and heating element work much harder than designed, leading to premature component failure from constant overwork.
Stop using the dryer immediately until you resolve the restriction causing the alert. Clean your venting system and reset properly, then verify proper airflow before resuming normal use.
Why does D90 appear on my new LG dryer?
New dryers showing D90 codes almost always indicate installation problems rather than anything wrong with the appliance itself. Improper venting causes immediate codes because the system detects restrictions right from the first cycle.
Crushed transition ducts happen surprisingly often during initial installation. Pushing the dryer too close to the wall compresses flexible ducts, and installers often don’t realize they’ve created a restriction. Maintain that 6-inch clearance.
Using improper duct materials triggers codes very quickly in new installations. Flexible vinyl or foil restricts airflow excessively compared to what LG designed the dryer for. Install rigid 4-inch metal duct throughout.
Factory sensor calibration assumes your installation complies with all specifications. Non-compliant venting exceeds the dryer’s design capacity, and the unit correctly detects this restriction even though nothing is actually “clogged.”
Verify that your exhaust vent cap operates freely without sticking. Brand new caps sometimes stick initially until they’ve been used a few times, and damper flaps must open completely during operation.
How often should I clean my dryer vent to prevent D90?
Clean your lint trap before every single load without any exceptions. This absolutely basic habit prevents most dryer issues and takes only 5 seconds of your time.
Professional vent cleaning frequency depends entirely on your usage patterns. Heavy users running 7 or more loads weekly need annual professional service, while moderate users can schedule cleaning every 2-3 years.
Perform DIY quarterly exterior vent inspections as part of routine home maintenance. Remove the cap and look inside for visible debris, clearing anything you find before it becomes a real problem.
Your blower housing needs cleaning every 1-2 years depending on usage. This requires partial dryer disassembly but prevents most of those frustrating LG dryer D90 no blockage situations.
Clean moisture sensors monthly using rubbing alcohol to prevent residue buildup. This prevents false Flow Sense readings and takes less than one minute of effort.
What’s the difference between D80 and D90 codes?
D80 indicates 80% airflow restriction, representing moderate blockage in your system. This serves as an early warning that gives you time to schedule cleaning before things get worse.
D90 signals 90% restriction, which is severe blockage requiring immediate action. The difference is significant because D90 represents imminent fire risk rather than just reduced efficiency.
Both codes use identical Flow Sense technology and work the same way. Only the severity threshold differs between them, with D90 indicating more serious restriction than D80.
Treat D80 seriously despite its lower severity level rather than waiting for D90 to appear before taking action. Early intervention prevents escalation to more serious problems.
D95 represents the critical restriction level beyond D90 and indicates nearly complete blockage. Stop using your dryer immediately if D95 appears and don’t resume operation until you’ve cleared the restriction.
Also Read;
Conclusion: Solving the D90 Mystery
LG dryer D90 codes without obvious blockages frustrate thousands of owners every year, but understanding where hidden restriction points develop empowers you to troubleshoot effectively. The solution almost always hides somewhere that standard cleaning routines don’t reach.
Systematic inspection finds problems that casual examination misses completely. Focus on the blower housing, transition ducts, and installation compliance with manufacturer specifications. These less obvious areas cause the vast majority of mysterious LG dryer D90 no blockage situations.
Proper installation prevents many issues from developing in the first place. Follow manufacturer specifications closely for length, diameter, and configuration. Installations that comply with LG’s requirements rarely trigger false alerts or persistent codes.
Regular maintenance keeps your Flow Sense system functioning accurately over the long term. Monthly sensor cleaning combined with quarterly vent inspections prevents problems before they develop, and professional cleaning every 1-3 years ensures sustained long-term performance.
Don’t ignore D90 codes hoping they’ll disappear on their own. These warnings exist specifically to protect you against fire hazards and equipment damage, so address restrictions promptly to protect both your home and your investment.
Reset procedures only work after you’ve fixed the actual underlying problems. Clearing codes without resolving physical restrictions just wastes your time and delays necessary repairs. Always verify proper airflow before considering the job complete.
When your DIY efforts don’t solve the problem, seek professional help rather than continuing to struggle. Specialized equipment and professional experience solve stubborn problems that resist homeowner troubleshooting. The investment prevents continued frustration and potentially dangerous situations.
Your LG dryer’s Flow Sense system provides valuable protection when you respect and maintain it properly. Understanding D90 beyond just surface-level blockages transforms this frustrating alert into an opportunity for improving efficiency, safety, and performance for years to come.
